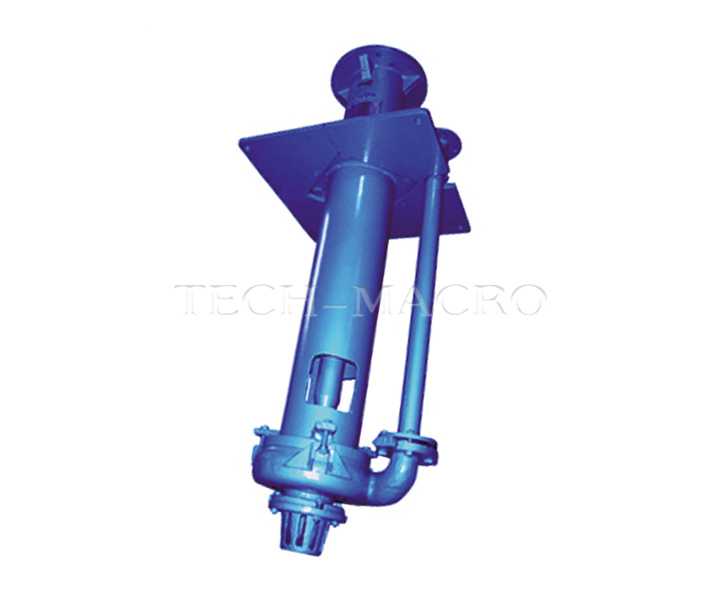

          KS Series Sump Slurry Pump

          Model:KS Series
          Head: 4~40 m
          Capacity: 17~1260 m3/h
          Pump type: Vertical sump pump
          Media: Slurry
          Material: Metal, rubber, ceramic,etc

          1. Description:

          The KS series heavy duty cantilevered sump pumps are vertical and centrifugal slurry pumps, which are suited for handling abrasive or corrosive, high density slurry with large particle size solids.

          Typical Application:

          ● Sewage Disposal
          ● Agricultural field irrigation
          ● Flue Gas Desulphurization in thermal power plant
          ● Mine and metallurgy
          ● Chemical industry and pollution discharge
          ● Other industries like municipal project, coal and building materials,etc.

          2. Features:

          ● Rational construction; easy maintenance; stable performance; reliability and durability.
          ● Guide bearing is added on this pump to make its operation more stable and flushing water should be fixed at the position of guide bearing.
          ● All parts immersed in liquid are equipped with rubber liner, which is suitable for delivering the non-edge abrasive slurry. Wet parts of the KS type pump are made of abrasion-resistant metal.
          ● The “L” type extended shaft series KS pump is suitable for deeper level condition.
          ● The pump head need to be submerged in the water when working.
          ● The pump has no need for shaft seal or sealing water.
          ● The pump can be driven by belt or coupling directly.
          ● The gap between the impeller and the back liner can be adjusted to ensure the pump working efficiently.

          1. Operating Limits

          ● Discharge diameter: 40~300 mm
          ● Flow Capacity: 17~1260
           m3/h
          ● Head: 4~40 m

          2.  Materials:

          Materials Options
          Construction Standard Optional
          Wet end parts (Liners,Impellers) High chrome alloy (A05, A07, A08, A09, A11, A49, A33, A61……);
          Natural rubber (R26, R24, R55......);
          Synthetic rubber(S01, S12, S21, S42......)
          Composite ceramics
          Polyurethane
          The material adopted is usually based on the detailed application, or could be according to the customer’s requirements.

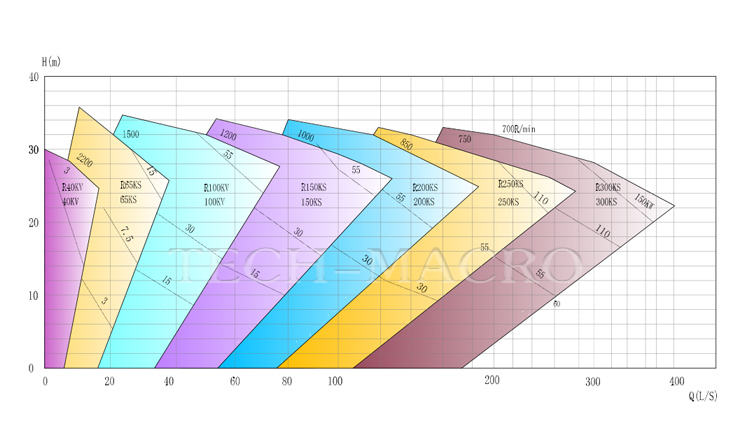

          3. Performance Chart:

          Note: Approximate performance of clean water and only for primary model choice.

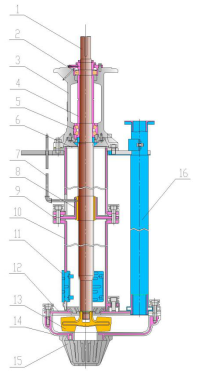

          Structure
          1 Shaft

          2 Bearing

          3 Bearing housing

          4 Bearing spacer

          5 Bearing

          6 Adjusting shim

          7 Colum

          8 Strainer

          9 Back liner

          10 Impeller

          11 Frame plate

          12 Lower strainer

          13 Discharge pipe

          KS Series Standard Type


          1 Shaft

          2 Bearing

          3 Bearing seat

          4 Bearing spacer

          5 Bearing

          6 Column bolt assy

          7 Flushing pipe

          8 Bearing shell

          9 Bearing support

          10 Column

          11 Strainer

          12 Back liner

          13 Impeller

          14 Frame plate

          15 Lower stainer

          16 Discharge pipe

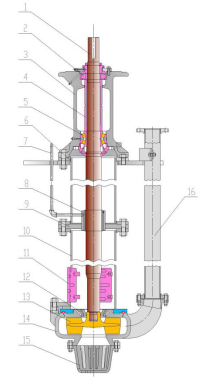

          KS(L) Series Extension Type

          1 Shaft

          2 Bearing

          3 Bearing housing

          4 Bearing spacer

          5 Column bolt assy

          6 Column

          7 Strainer

          8 Back liner

          9 Impeller

          10 Frame plate

          11 Lower strainer

          12 Discharge pipe

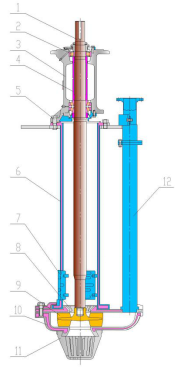

          KS Series Rubber Lined Standard Type


          1 Shaft

          2 Bearing

          3 Bearing housing

          4 Bearing spacer

          5 Bearing

          6 Bearing gasket

          7 Flushing pipe

          8 Bearing shell

          9 Bearing support

          10 Column

          11 Strainer

          12 Back liner

          13 Impeller

          14 Frame plate

          15 Lower stainer

          16 Discharge pipe

          KS(L) Series Rubber Lined Extension Type

          Note: Type KS pump with all metal is for abrasive duty.
                    Type KS pump with elastomer protected is for acid or abrasive duty.

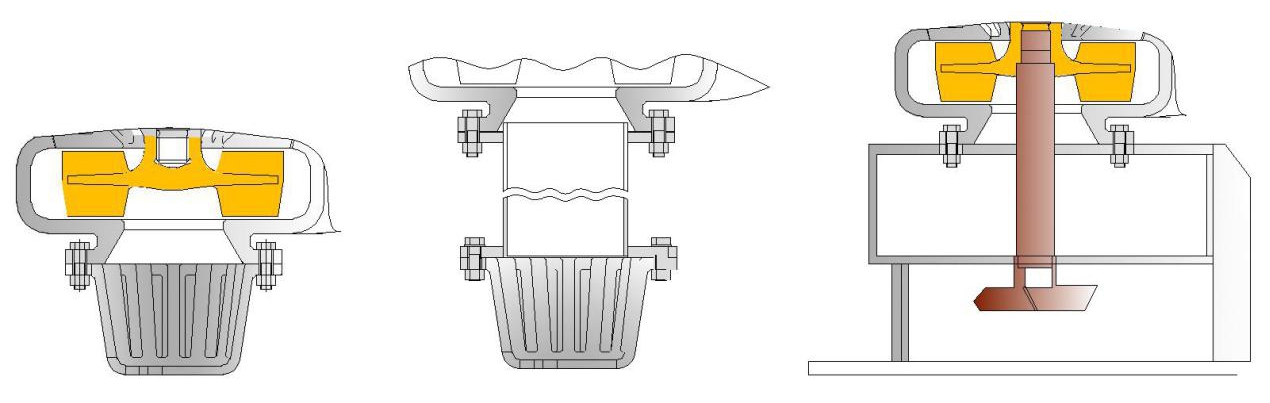

          Three-kind Construction Of The Pump Inlet As Follows:


          Standard type with strainer Suction pipe with strainer With agitator
