Shijiazhuang Tech-macro Pump Industry Co.,Ltd

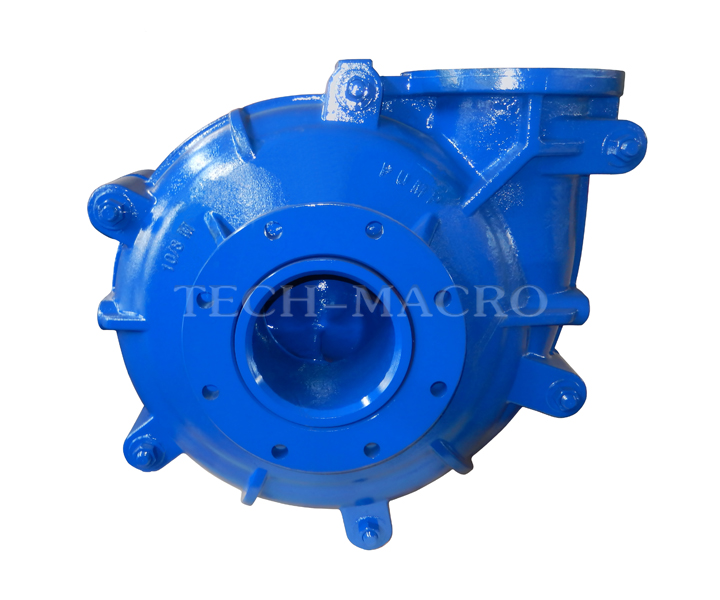

          KM Series Centrifugal Slurry Pump

          Model:KM Series
          Head: 10--68 m
          Capacity: 200--1600 m3/h
          Pump type: Horizontal centrifugal
          Media: Slurry
          Material: Metal, rubber, ceramic,etc

          1. Description:

          Type KM series slurry pump is designed for transporting liquid containing suspended solid particles, or the high hardness, strong corrosive and high density slurry.

          Typical Application:


          ● Iron, cooper or phosphorus mineral processing
          ● Cyclone feeding
          ● Removing ash in power plant
          ● Flue gas desphurization in power plant
          ● Flushing steel mill blast furnace cinder
          ● Removing ash in power plant
          ● Ball grinding mill ore discharging
          ● Other wear-resistant and anti-corrosive working conditions

          2. Features:



          ● High efficiency, wear resistant, stable performance, interchangeability of parts; excellent hydraulic model.
          ● Replaceable wear-resistant metal or rubber liners, impellers&volute liners are made of wear-resistant materials(such as A05, A49,and other high chrome metal or rubber).
          ● Bearing assembly use cylindrical structure, adjusting the space between impeller& front liner easily, being removed completely when being repaired. Grease lubrication.
          ● The impeller can be 2--6 blades ones, making the pump more effective. And the pump can achieve in excess of 87% in the best efficiency area,
          ● Shaft seal could use the packing seal, expeller seal and mechanical seal. One pump also can be use expeller seal accompany with packing.
          ● The discharge outlet can be positioned at intervals of 45 degrees by request and oriented to any 8 positions to suit installations and applications.
          ● This pump can be installed in multistage series to meet the delivery for long distance.

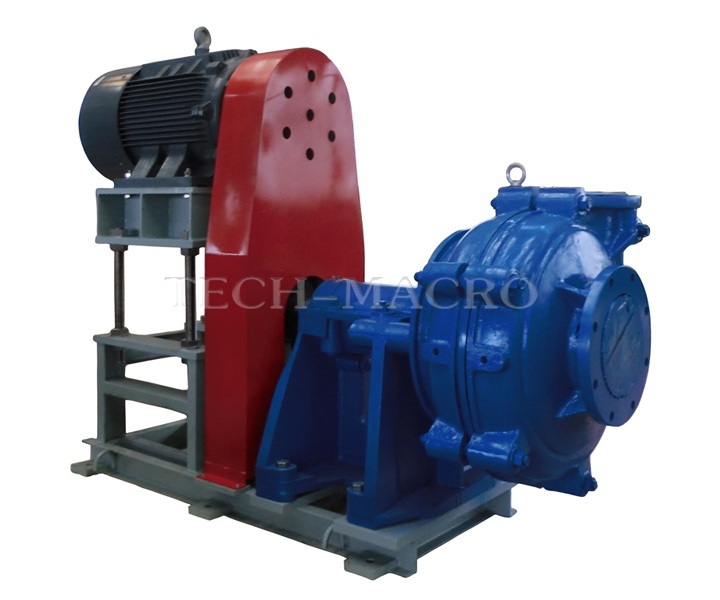

          ● Drive types: direct coupling drive(DC), V belt drive(CR, CV, ZV, CL), etc.
          1.  Operating Limits

              ● Outlet Diameter:25-450 mm(1--18 inches)
              ● Flow:200--1600 m3/h
              ● Head:10--68 m

          2. Materials:

          Materials Options
          Construction Standard Optional
          Wet end parts (Liners,Impellers) High chrome alloy (A05, A07, A08,A09,A11, A49, A33, A61……);
          Natural rubber (R26, R24, R55......);
          Synthetic rubber(S01, S12, S21, S42......)
          Composite ceramics
          Polyurethane
          The material adopted is usually based on the detailed application, or could be according to the customer’s requirements.


          3. Performance Chart:


          Note:  Approximate performance of clean water and only for primary model choice.

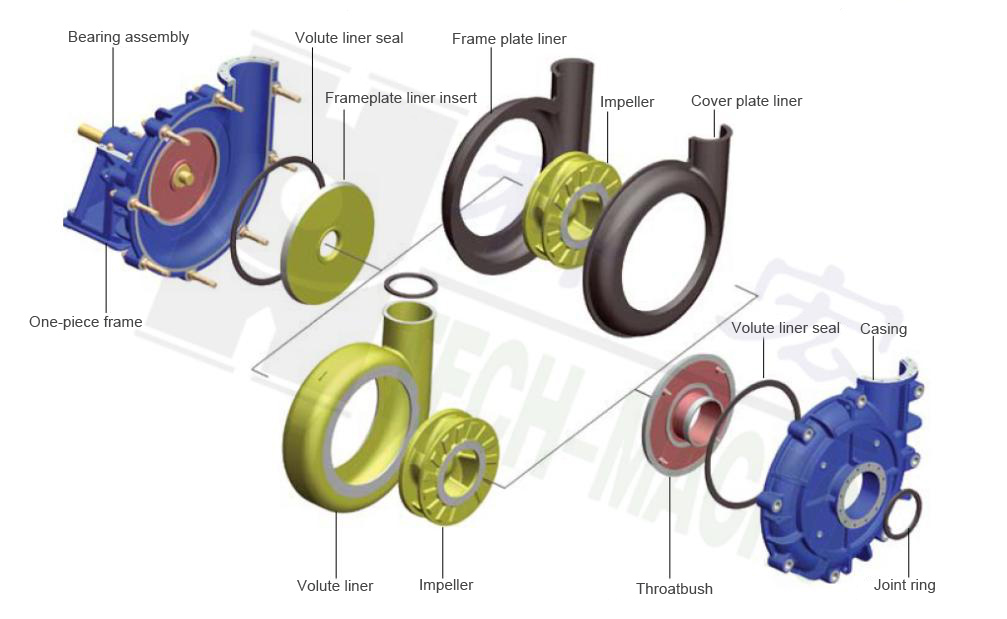

          Structure
