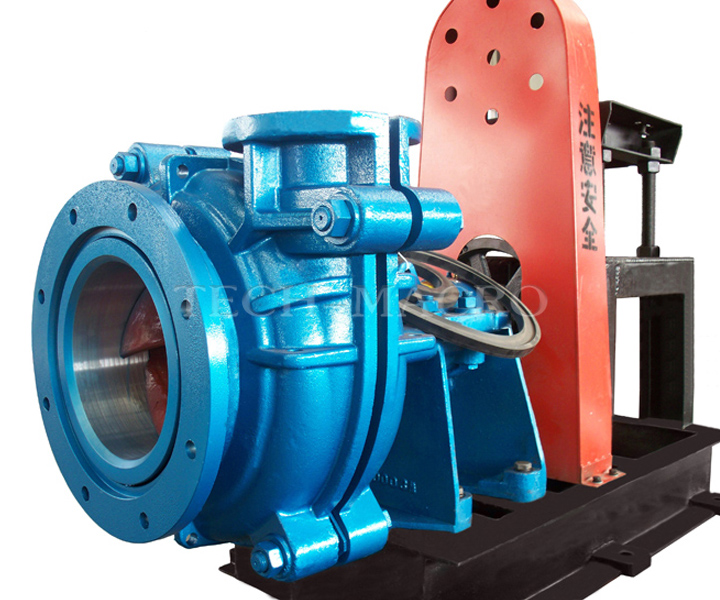

KHF Series Horizontal Froth Pump

Model：KHF Series
Head: 5-66 m
Capacity: 20-7500 m3/h
Pump type: Horizontal froth pump
Media: Frothy slurry
Material: Metal, rubber, ceramic

Enquiry Now

1. Description:

Our company has designed the new horizontal froth pump equipped with innovative inducer blade impeller and oversized inlet.

According to customers' feedbacks, it can successfully handle high concentration and high capacity ratio froth slurry, without any vibration when delivering slurries at different flow rates and viscosities.

Typical Application:

This froth pump is mainly applied to gold, copper, molybdenum, iron, wastewater and other flotation processes, and deliver high concentration and high viscosity slurry with bubbles.

2. Features:

● KHM/KHL/KHL series horizontal froth pump-easy disassembly and maintenance

● Improved the existing horizontal slurry pumps, standard mounting dimensions and flange center lines;
● Wet parts materials: interchangeable anti-abrasive metal and natural rubber;Inducer blade impeller for positive froth feed;
● Enlarged high efficiency throatbush to maximize the inlet size and reduce NPSH required;
● Oil or grease lubricated bearing assemblies are available for various working conditions;
● Drive types: direct coupling drive(DC), V-belt drive(CV, ZVz, CLz, CRz).

1. Performance Parameters:

Outlet size: 2" - 22'
Flow rate: 20-7500m³/h
Head: 5-66m

2. Material:

Materials Options
Construction	Standard	Optional
Wet end parts (Liners,Impellers)	High chrome alloy (A05, A07, A08, A09, A11, A49, A33, A61……); Natural rubber (R26, R24, R55......); Synthetic rubber(S01, S12, S21, S42......) Composite ceramics	The material adopted is usually based on the detailed application, or could be according to the customer’s requirements.

3. Performance Chart:

Note: Approximate clear water performance, and only used for primary model choice.

Structure

KHF Series Froth Slurry Pump
