Shijiazhuang Tech-macro Pump Industry Co.,Ltd

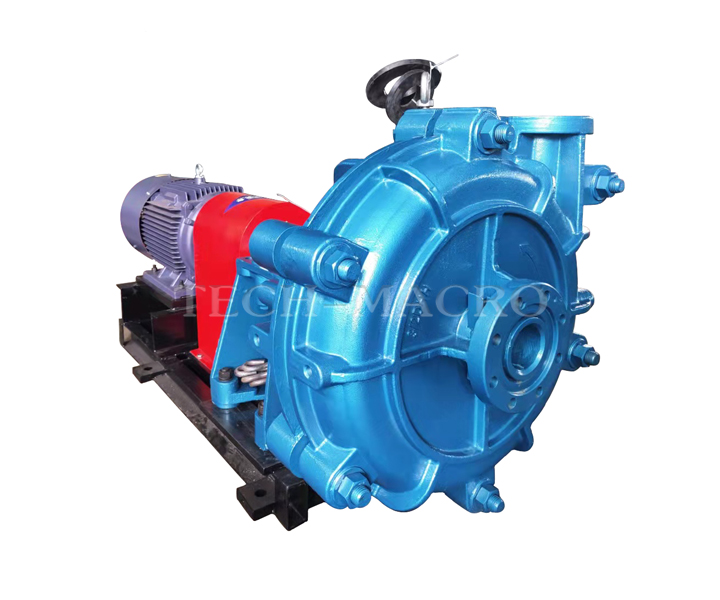

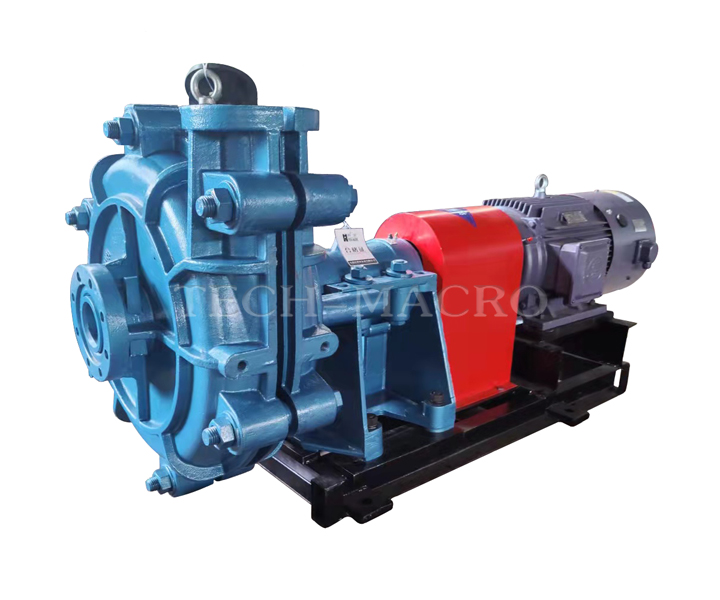

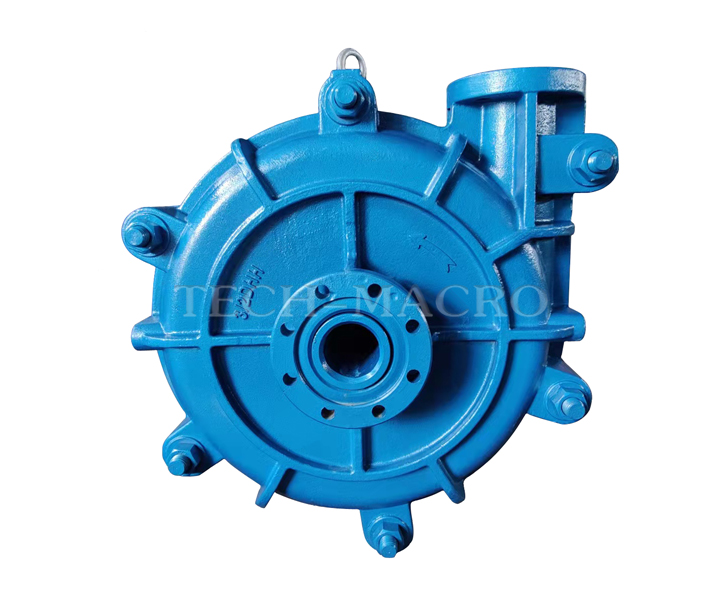

          KH Series High Head Slurry Pump

          Model:KH Series
          Head: 12--105 m
          Capacity: 3.6--900 m3/h
          Pump type: Horizontal centrifugal
          Media: Slurry
          Material: Metal, ceramic,etc

          1. Description:

          Type KH pump is heavy-duty single-stage single-suction high-head horizontal centrifugal slurry pump. This type of pump has larger volume and separated wear-resistant layer and bearing layer. It is suitable for transferring high head slurry at high pressure, mostly used for long distance transporting.

          Typical Application:


          ● Iron, cooper or phosphorus mineral processing
          ● Cyclone feeding
          ● Removing ash in power plant
          ● Flue gas desphurization in power plant
          ● Flushing steel mill blast furnace cinder
          ● Removing ash in power plant
          ● Ball grinding mill ore discharging
          ● Other wear-resistant and anti-corrosive working conditions

          2.  Features:


          ● High efficiency, wear resistant, stable performance, interchangeability of parts; high head; energy saving.
          ● Replaceable wear-resistant metal liners, impellers&volute liners are made of wear-resistant metal(such as A05,A49,and other high chrome metal). The bearing layer and the wear-resistant layer can be separated.
          ● High efficiency impeller of large diameter and slow rotation speed ensures the pump with long wear parts using life and low operating cost.
          ● Bearing assembly use cylindrical structure, adjusting the space between impeller& front liner easily, being removed completely when being repaired. Grease lubrication.
          ● Shaft seal could use the packing seal, expeller seal and mechanical seal. One pump also can be use expeller seal accompany with packing.
          ● The discharge outlet can be positioned to 8 directions at intervals of 45 degrees.
          ● This pump can be installed in multistage series to meet the delivery for long distance.
          ● Drive types: direct coupling drive(DC), V belt drive (CR, CV, ZV, CL), etc.
          1. Operating Limits:

          ● Outlet Diameter:25 to 150 mm (1--6 inches)
          ● Flow Capacity:3.6--900 m3/h

          ● Head:12--105 m

          2. Materials:

          Materials Options
          Construction Standard Optional
          Wet end parts (Liners,Impellers) High chrome alloy (A05, A07, A08, A09, A11, A49, A33, A61……);
          Composite ceramics
          The material adopted is usually based on the detailed application, or could be according to the customer’s requirements.


          3. Performance Chart:
          Note: Approximate performance of clean water and only for primary model choice.

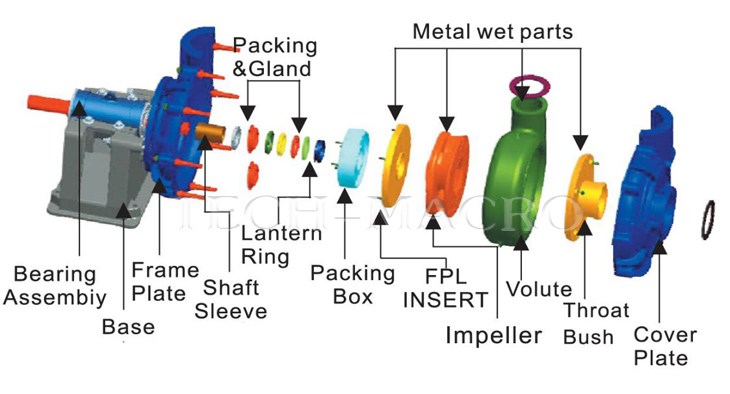

          Structure
