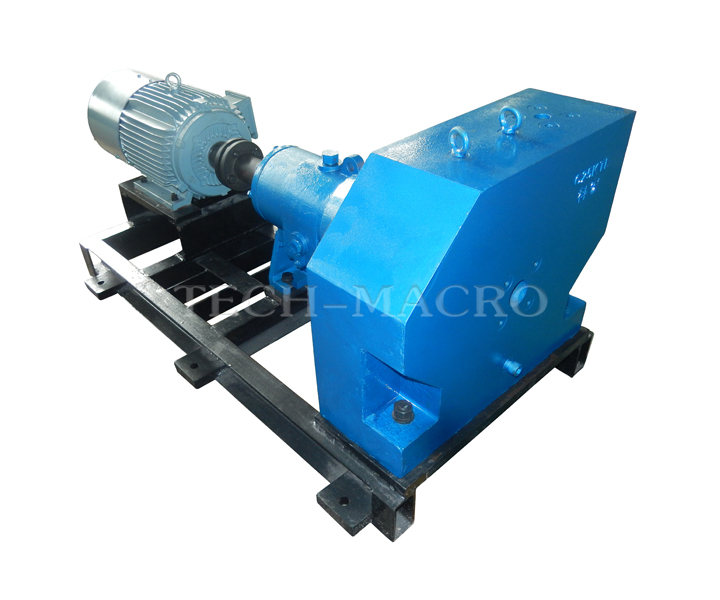

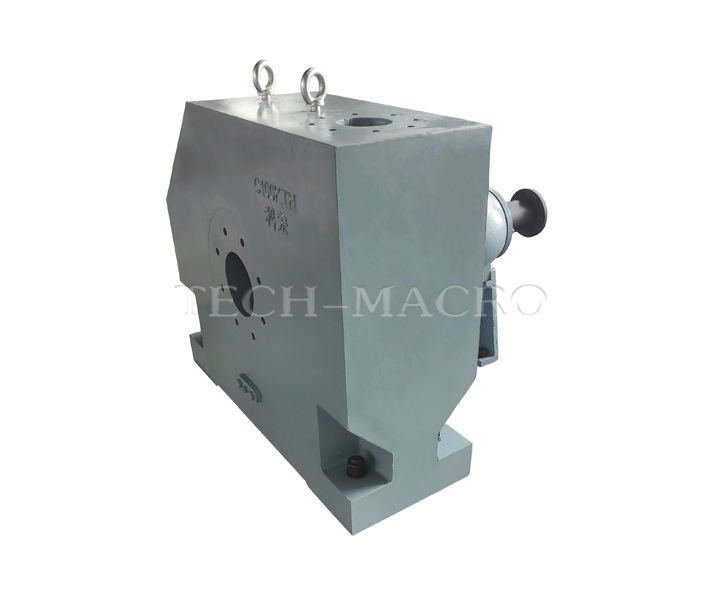

C-KT Series SiC Ceramic Centrifugal Pump

Model：C-KT series
Head: up to 65m
Capacity: 10-- 1000 m3/h
Pump type: Horizontal centrifugal
Media: Slurry
Material: SiC ceramic

Enquiry Now

1. Description:

The C-KT series sic-ceramic centrifugal pump developed by Tech-Macro has the characteristics of high hardness, super wear resistance and corrosion resistance, high temperature resistance, etc. It is suitable for transferring strong corrosion and strong abrasive fluids, such as mud, desulfurization slurry and wastewater, coal slurry, fine-grained silica sand water mixture, chemical slurry, etc.

Typical Application:

● FGD(Flue Gas Desulphurization) process
● Zero Liquid Discharge process
● Chemical industry
● Other highly corrosive and abrasive fluids

2. Features:

● High efficiency leads to low energy costs; long service life; low wear low operating cost.

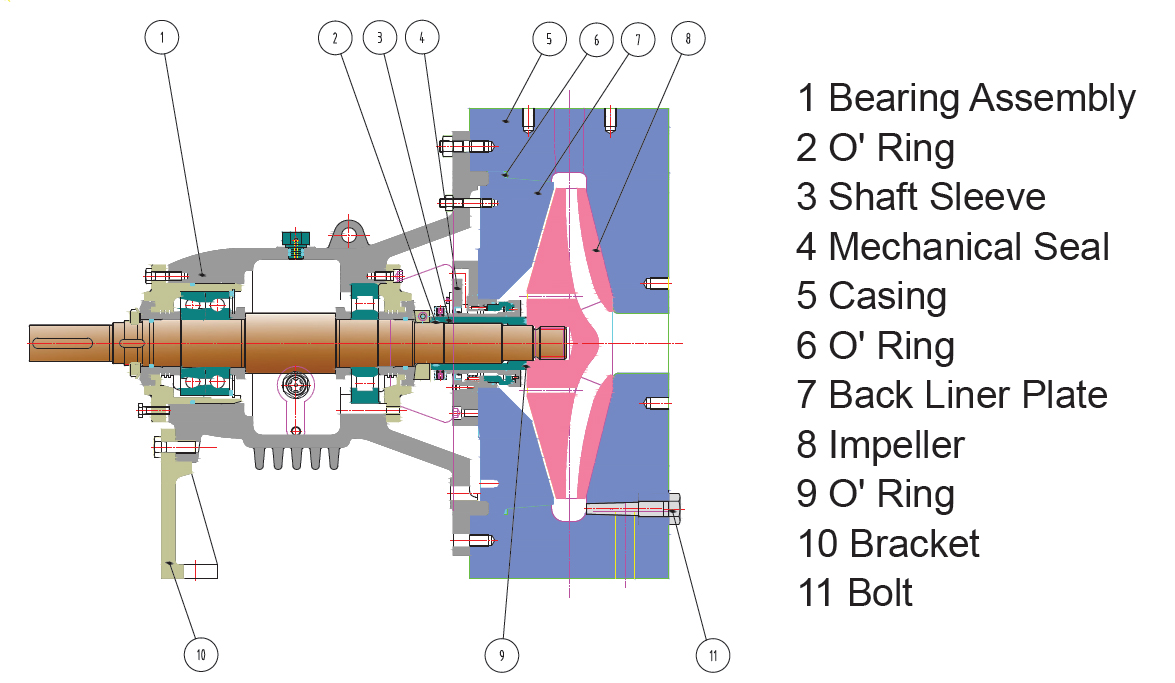

● Back pull-out structure ensures easy maintenance (the complete rotating assembly can be removed while the casing remains on its position and then no need to dismantle the discharge and inlet pipeline) . With impeller release collar, no special tools required during disassembly, ensure no damage to impeller and shaft.

● Efficient impeller, which is made of abrasion and corrosion resistance ceramic.

● Cylindrical roller bearings on pump end, and two disc angular contact ball bearings in back-to-back arrangement are mounted to the driving end, which improves the bearings working condition and extend the service life of the bearings.
● The C- KT series SiC ceramic pumps are designed to be connected directly driven.
● Integrating mechanical sealing ensures the reliability of the pump.
● The wet end parts are replaceable or repairable, reduce the using life-Cycle-Cost.

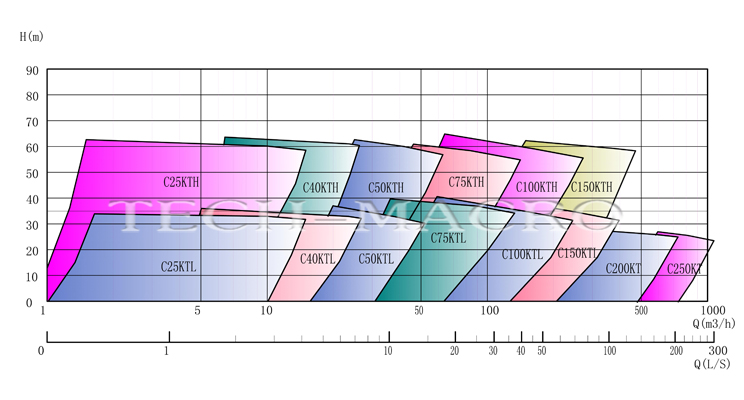

1. Pump Specification:

Discharge Diameter: 25~250mm
Flow Capacity: 10~1000m3/h
Head: up tp 65m

2. Material:

Materials Specification
Materials	SiC (Silicon carbide) Ceramic
Composition	Pherical superhard ceramic, ceramic powder, metal carbide and quartz particles combined by two-component thermosetting adhesive
Mohs Hardness	9～9.5
Working temperature	-40℃～110℃
Acid-alkali resistance	PH 0～14
Application range	It can be used for the conditions of any chlorine ion concentration.
