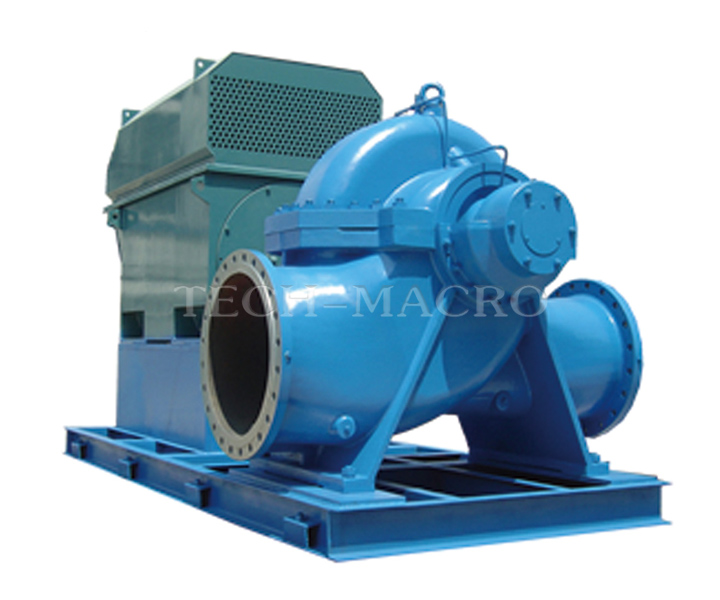

SX Series Double Suction Split Casing Centrifugal Pump

Model：SX Series
Head: 10~170 m
Capacity: 50~13000 m3/h
Pump type: Horizontal centrifugal pump
Media: Clear water
Material: Metal

Enquiry Now

1. Description:

In order to meet the requirement for the market, series SX single-stage double suction centrifugal pumps, as new type of high-efficiency & energy-saving products, are designed and manufactured by Shijiazhuang Tech-macro Pump Industry Co.,Ltd. on the basis of absorbing and adopting advanced technique for the same products at home and abroad.

Typical Application

Used for supplying & draining water in city, delivering water in factory, mine city as well as irrigation & drainage in countryside and so on.Also it can be used for setting up from yellow river with more sandiness if adapting special material.

2. Features

● Wider range of performance;
● High efficiency;
● Excellent suction performance;
● Different transfer medium different materials;
● Compact construction;
● Reliable operation,little libration and low noise
● Easy maintenance;
● Longer service life.

1. Operating Limits:
Inlet Diameter: 125~1200mm
Outlet Diameter: 80~900mm
The flow: 50~13000m³/h
Head: 10~170m

2. Material

Materials Options
Construction	Standard	Optional
Casing	Grey cast iron, ductile cast iron, nickel cast iron; Stainless steel (SS304, SS3016…);	The material adopted is usually based on the detailed application, or could be according to the customer’s requirements.
Other wet end parts (Impellers)	Grey cast iron, ductile cast iron, nickel cast iron; Brass, bronze; Stainless steel (SS304, SS316…);
Shaft	Carbon steel (1045), Stainless steel (2Cr13, 3Cr13)
Bracket	Carbon steel

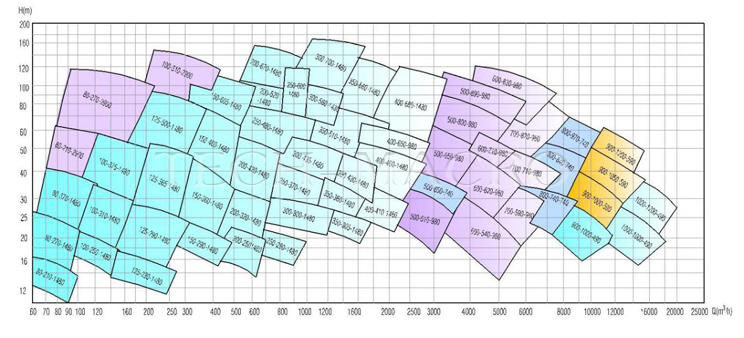

3. Performance Chart

Note: Approximate clear water performance, and only used for primary model choice.

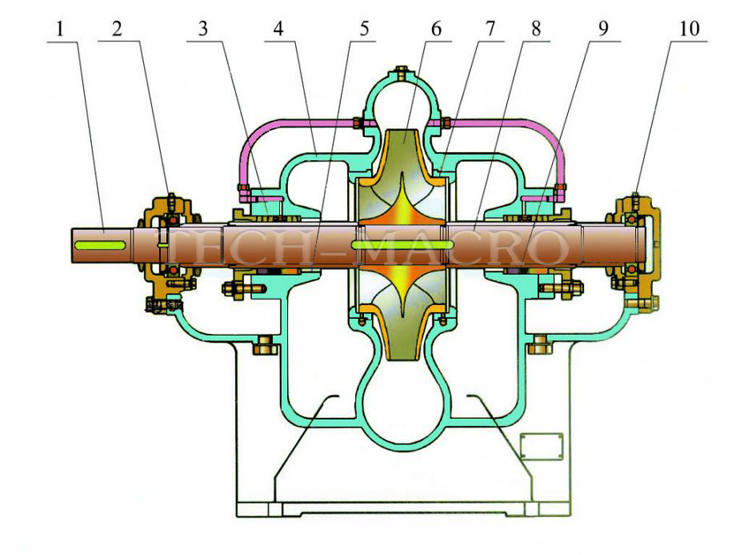

Constructure

SX series

1 Shaft 2 Bearing 3 Packing 4 Pump cover 5 Pump casing 6 Impeller 7 Seal ring 8 Shaft sleeve 9 Mechanical seal 10 Bearing
